Newest Conical Twin Screw Extruder

A conical twin screw extruder consists of two tapered screws rotating inside a barrel. The screw diameter gradually increases from the feeding section to the discharge section, providing strong conveying ability and efficient plasticization. With a conical twin screw structure, it provides efficient mixing, stable plasticization, and uniform melt output for PVC pipe, profile, wall panel, and sheet production.

Application: rigid PVC, foam PVC, WPC, PE WPC, etc
Application: Pipes, profiles, wall panels, door panels, sheets, and other plastic products

As a professional plastic machinery manufacturer, EANS conical twin screw extruders are widely used in complete PVC extrusion lines, offering reliable performance, energy-efficient operation, and customized solutions for different PVC processing applications.

Specifications
Model

SJ53/128 SJ55/120 SJ65/132 SJ80/156 SJ92/188

Inquiry

Specifications Advantage FAQ About Us

SPECIFICATION OF CONICAL TWIN SCREW EXTRUDER

plastic extrusion expert

Model	Capacity	Motor Power	Screw Type
SJ48/105	120 KG/H	18 KW	Conical Twin Screw
SJ55/120	150 KG/H	22 KW	Conical Twin Screw
SJ65/132	250 KG/H	37 KW	Conical Twin Screw
SJ80/156	450 KG/H	75 KW	Conical Twin Screw
SJ92/188	650 KG/H	110 KW	Conical Twin Screw

ADVANTAGE OF EANS CONICAL TWIN SCREW EXTRUDER

plastic extrusion expert

1. Efficient Mixing and Plasticizing
Two intermeshing screws provide effective material conveying, mixing, and plasticization, ensuring a homogeneous melt for consistent extrusion.
2. Strong PVC Processing Capability
The conical twin screw structure is particularly suitable for PVC processing, providing stable conveying and plasticizing performance for rigid and filled PVC compounds.
3. High Torque and Stable Output
The twin-screw configuration delivers strong conveying capability and stable extrusion pressure, supporting continuous production with consistent output.
4. Excellent Filler Dispersion
The intensive mixing action helps disperse calcium carbonate, stabilizers, pigments, and other additives more evenly throughout the PVC compound.
5. Controlled Plasticization
The conical screw geometry provides progressive compression and plasticization, helping achieve the required melt condition while reducing unnecessary shear during PVC processing.
6. Good Self-Cleaning Performance
The interaction between the two screws helps reduce material accumulation inside the processing section, making material replacement and production changeovers more manageable.
7. Suitable for High-Filler Formulations
The strong conveying and mixing capability makes the conical twin screw extruder suitable for PVC formulations with relatively high levels of fillers, helping manufacturers balance material cost and product performance.

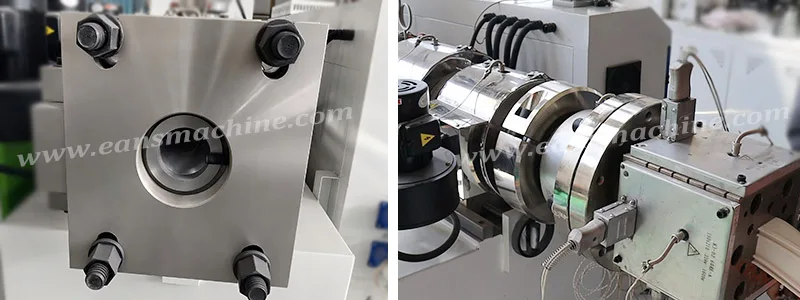

best-conical-twin-screw-extruder

FAQ

What materials can the conical twin screw extruder process?

The conical twin screw extruder is mainly designed for PVC resin and can process formulations containing calcium carbonate and other additives. The actual formulation can be adjusted according to the target product and required properties.

What products can be produced with a conical twin screw extruder?

The conical twin screw extruder can be configured for PVC pipes, profiles, wall panels, door panels, sheets, skirting boards, and other shaped plastic products by matching the appropriate die and downstream equipment.

Why is a conical twin screw extruder suitable for PVC processing?

A conical twin screw extruder provides strong conveying, mixing, and plasticizing performance while allowing controlled processing of PVC compounds. Its progressive screw geometry is well suited to the processing characteristics of rigid PVC.

What is the difference between conical and parallel twin screw extruder?

Both conical twin screw extruders and parallel twin screw extruders use two intermeshing screws to melt, mix, and transport plastic materials. The main differences are the screw shape, processing characteristics, output range, and typical applications.

How to choose a conical twin screw extruder for PVC production?

Choosing the right conical twin screw extruder for PVC production depends on several factors, including the PVC product type, required output, material formulation, screw design, and production requirements. A properly selected extruder can improve plasticization quality, production stability, and energy efficiency.

What determines the output of a conical twin screw extruder?

Extrusion output depends on the extruder model, screw diameter, screw design, motor power, PVC formulation, die resistance, and processing conditions. Therefore, the rated output should be selected according to the actual production requirements rather than the extruder model alone.

PRODUCTION LINES USING CONICAL TWIN SCREW EXTRUDERS

PVC Wall Panel Extrusion Production Line

EANS Machine has sold more than 1000 sets of PVC wall panel production lines.

Suitable for the production of various types of PVC wall panels, PVC ceilings, PVC fluted panels, etc.
Producing PVC wall panels with widths of 200mm, 250mm, 300mm, 400mm, etc.
Customized extrusion system, high efficiency, low energy consumption.

Welcome to contact us to customize your PVC ceiling wall panel production.

Learn More>

PE WPC Decking Making Machine

PE WPC decking making machine is mainly used for indoor and outdoor decking flooring, wall claddings, louvers, columns, etc. produced by extruding a composite of PE and wood flour.

Two-step extrusion: wood and plastic materials are granulated and then extruded to ensure stable WPC decking flooring quality.
WPC decking production line features high output, stable extrusion pressure, and excellent plasticizing effects.
Since 2006, EANS Machinery has specialized in WPC decking making machines. Our optimized screw design ensures stable plasticization, minimizes damage to wood fibers, and provides uniform material residence time for consistent extrusion and reliable product quality.

Learn More>

PVC Pipe Extrusion Production Line

PVC pipe production lines are used to make plastic pipes for municipal water supply and drainage, industrial water supply and drainage, civil water supply and drainage, irrigation, vegetation watering, etc. The pipe diameter range is from 12 to 630 mm. EANS PVC pipe production line produces pipes with advantages such as smooth pipe walls, light weight, high tensile and compressive strength, and high corrosion resistance.

Learn More>
