PVC Cable Trunking Making Machine

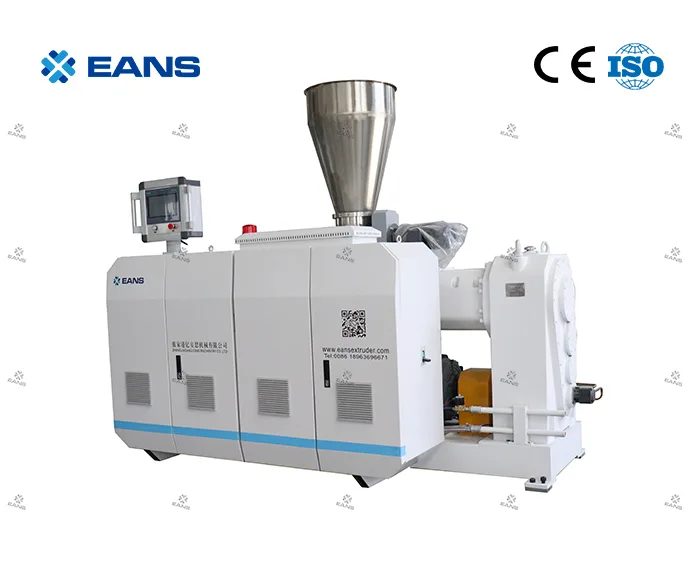

EANS PVC cable trunking making machine is specifically designed for wiring ducts of various profiles, made through high-temperature plasticizing and extrusion, it is durable and a perfect partner for safe electricity use.

Cable Trunking Width: 10*10mm, 20*10 mm, 24*14 mm, 50*25 mm, 80*80 mm, 100*100mm, etc. (customiz the size with request)

As a leading manufacturer of PVC cable trunking making machine, we provide turnkey support from equipment installation to operation training to ensure your production starts up smoothly and runs efficiently.

Specifications
Extruder Model

SJZ65/132

Inquiry

Application Description Features Parameters Installation Video FAQ

APPLICATION

Construction site equipment engineering

Low-voltage wiring storage

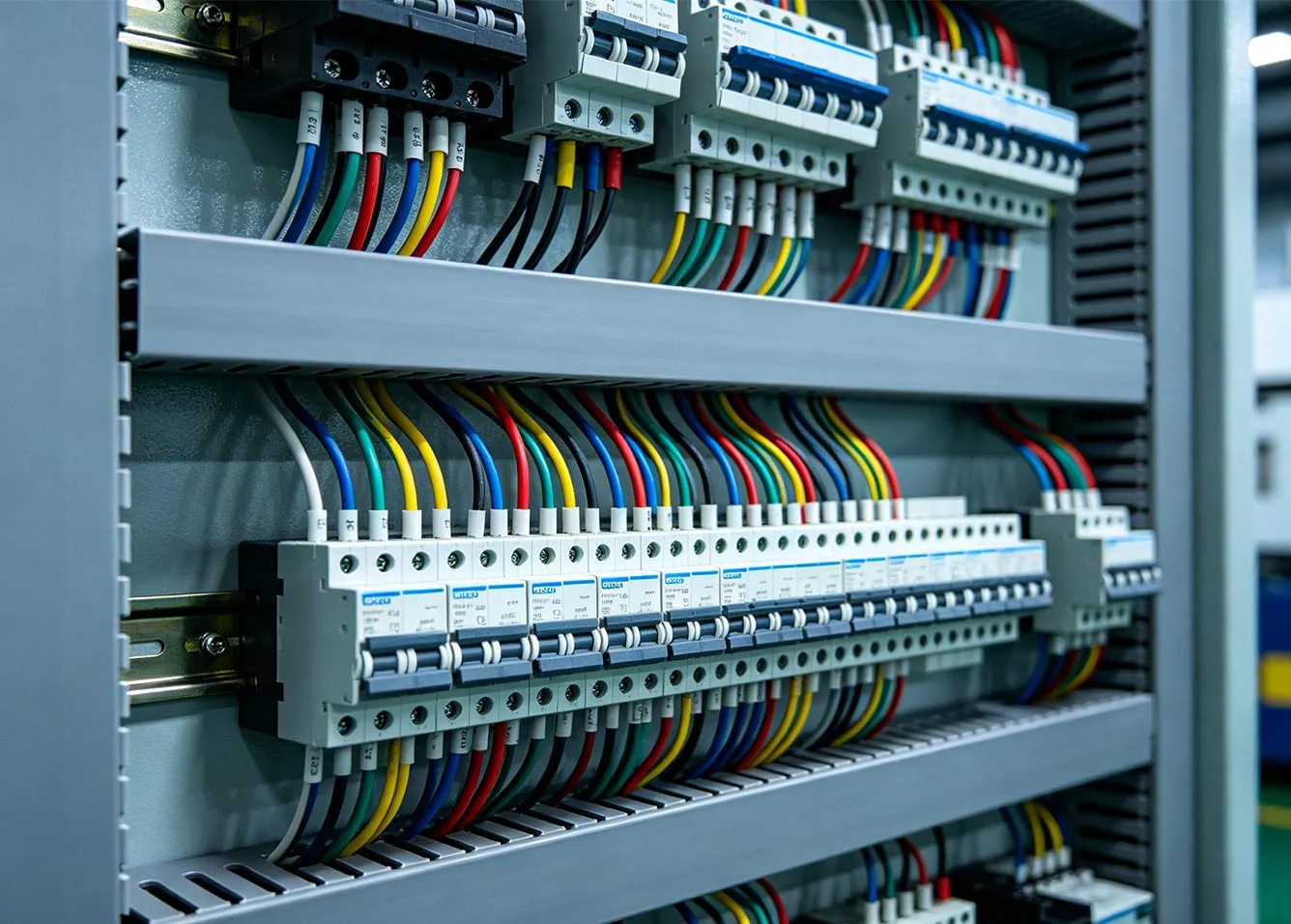

Factory and workshop wiring

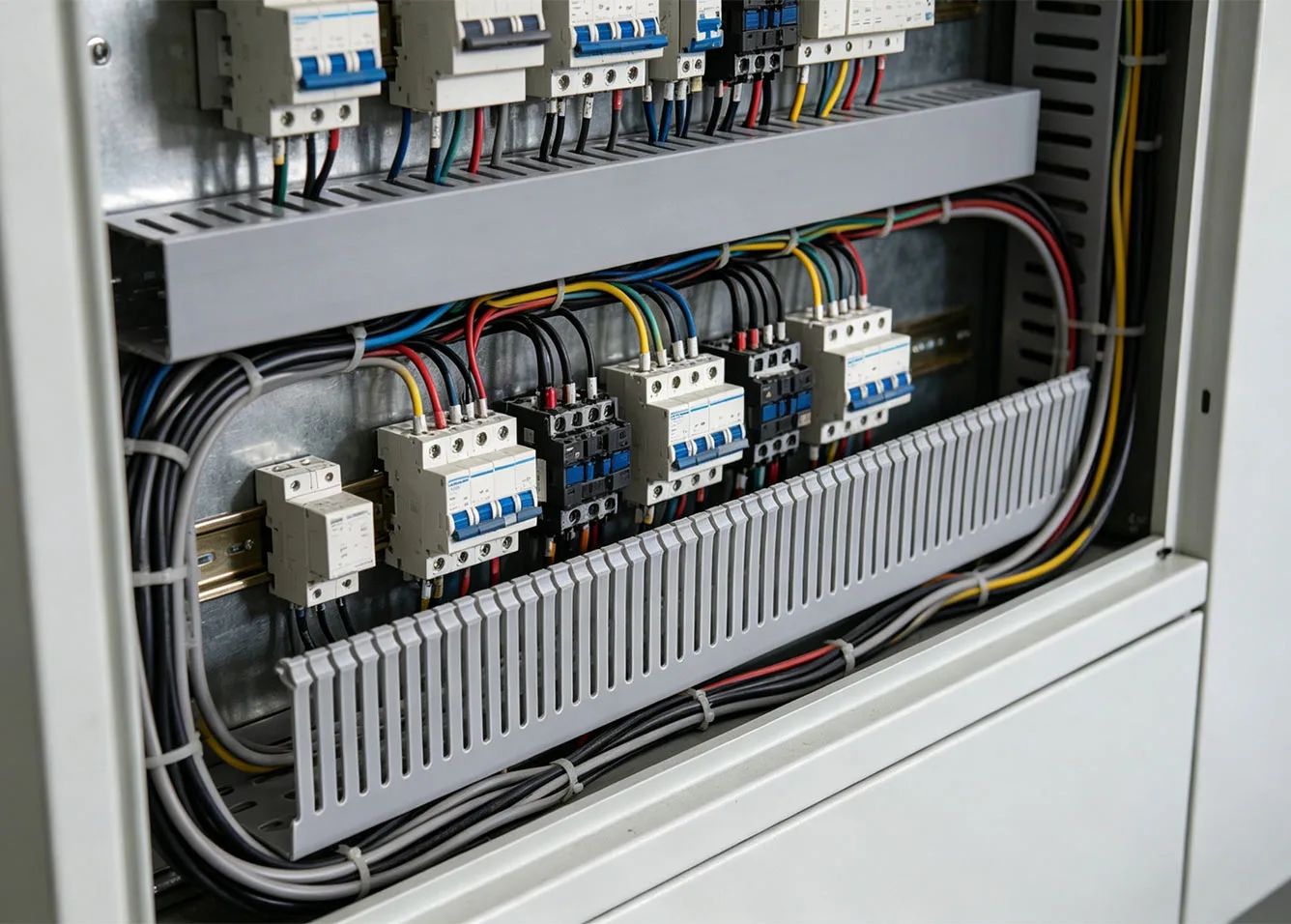

Interior wiring

PVC CABLE TRUNKING MANUFACTURING PROCESS

EANS PVC cable trunking making machine adopts a fully automated integrated design and features a well-structured 6-stage production process. It ensures high efficiency, stable product quality, and precise dimensional control throughout the entire production cycle. The machine completes the whole manufacturing process from raw material feeding to finished trunking in a single continuous production line.

1. Materials preparation —PVC resin(main reason for fire prevention of cable trunking), stabilizer, pigment, and additives are weighed and mixed according to the formula.
2. Mixing — high and low-speed mixing method to quickly and effectively mix PVC resin and other chemical additives, making the quality consistent throughout the cable trunking.
3.Extrusion — The mixed material is fed into a conical twin screw extruder, through high-temperature plasticizing and gradual extrusion molding.
4.Molding —PVC cable trunking extrusion die ensures continuous profile shaping. It is available in single, double, four, and eight-cavity designs to increase production capacity. The die is equipped with a thermal oil heating system, precision calibration section, and water cooling system to ensure stable forming and accurate PVC trunking profiles.
5.Cooling —Vacuum calibration and multi-stage cooling systems ensure precise dimensions and stable profile shape.
6.Hauling Off — Multi-track synchronized haul-off system ensures stable traction and accurate speed control.
7.Three Side Punching — Online hydraulic punching machine to drill the outlet holes, fixed holes, and ventilation holes on three sides in a single operation.
8. Cutting - Fixed-length cutting via photoelectric switch

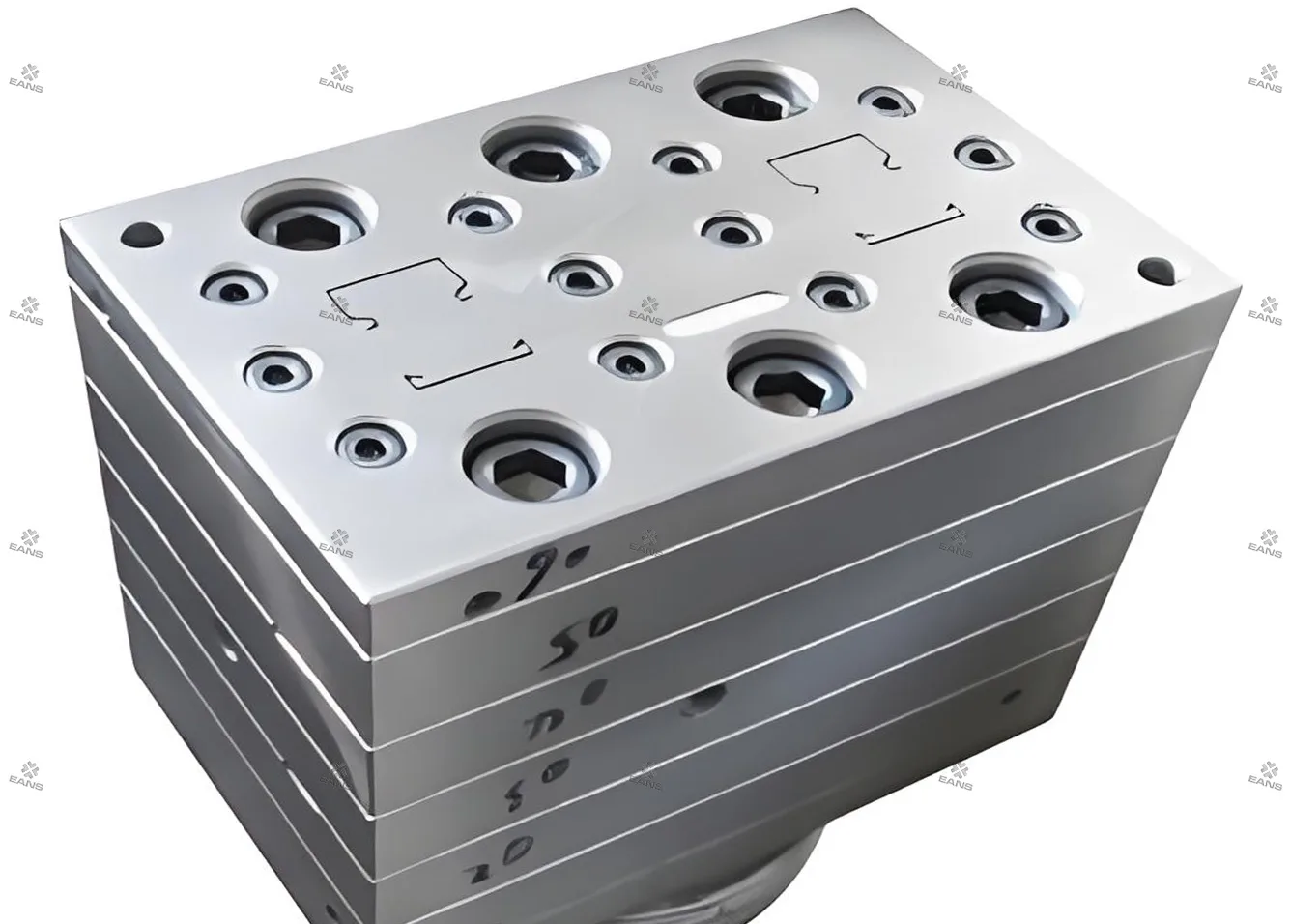

PVC Cable Trunking Extrusion Mold

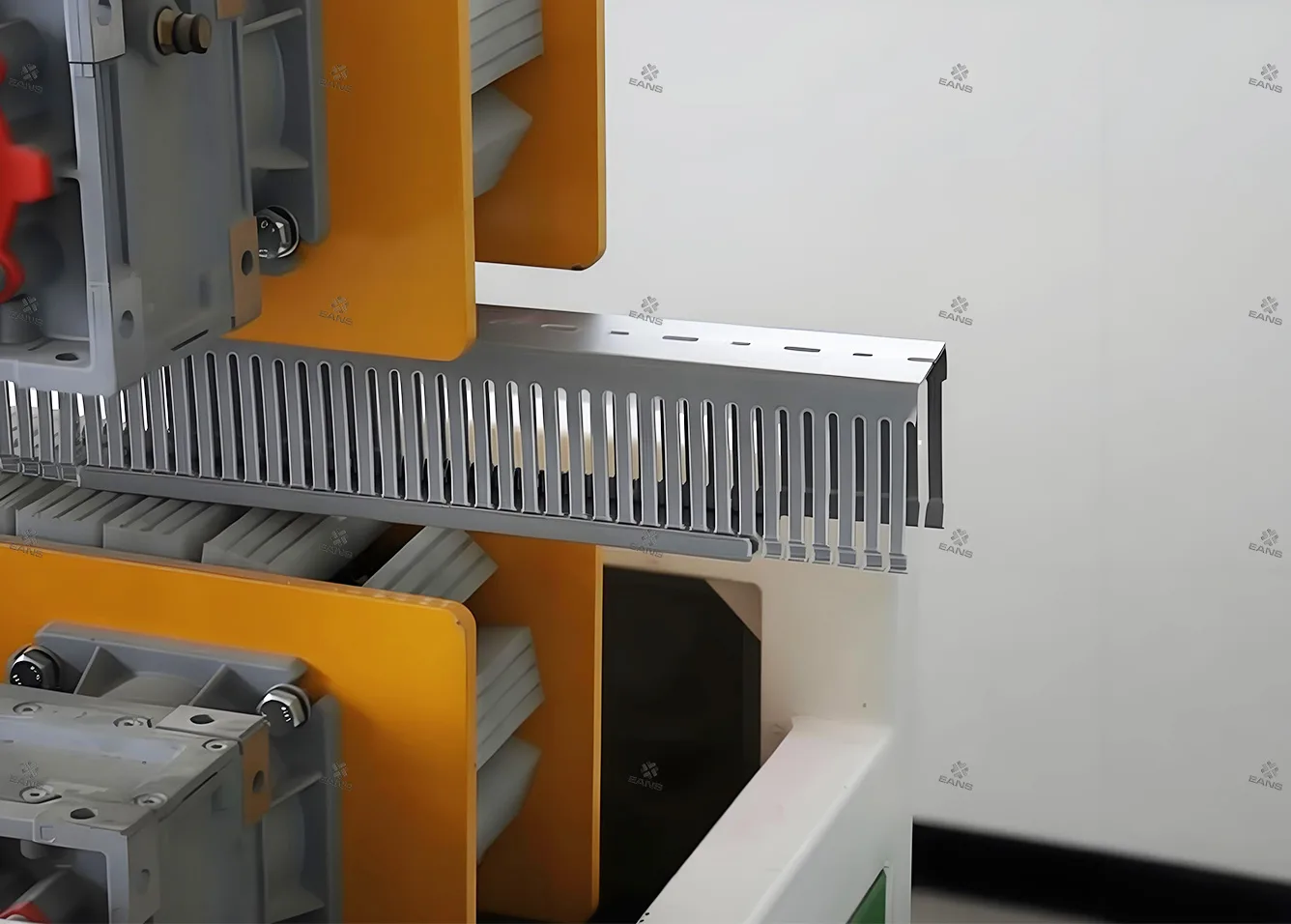

Punching

Cutter

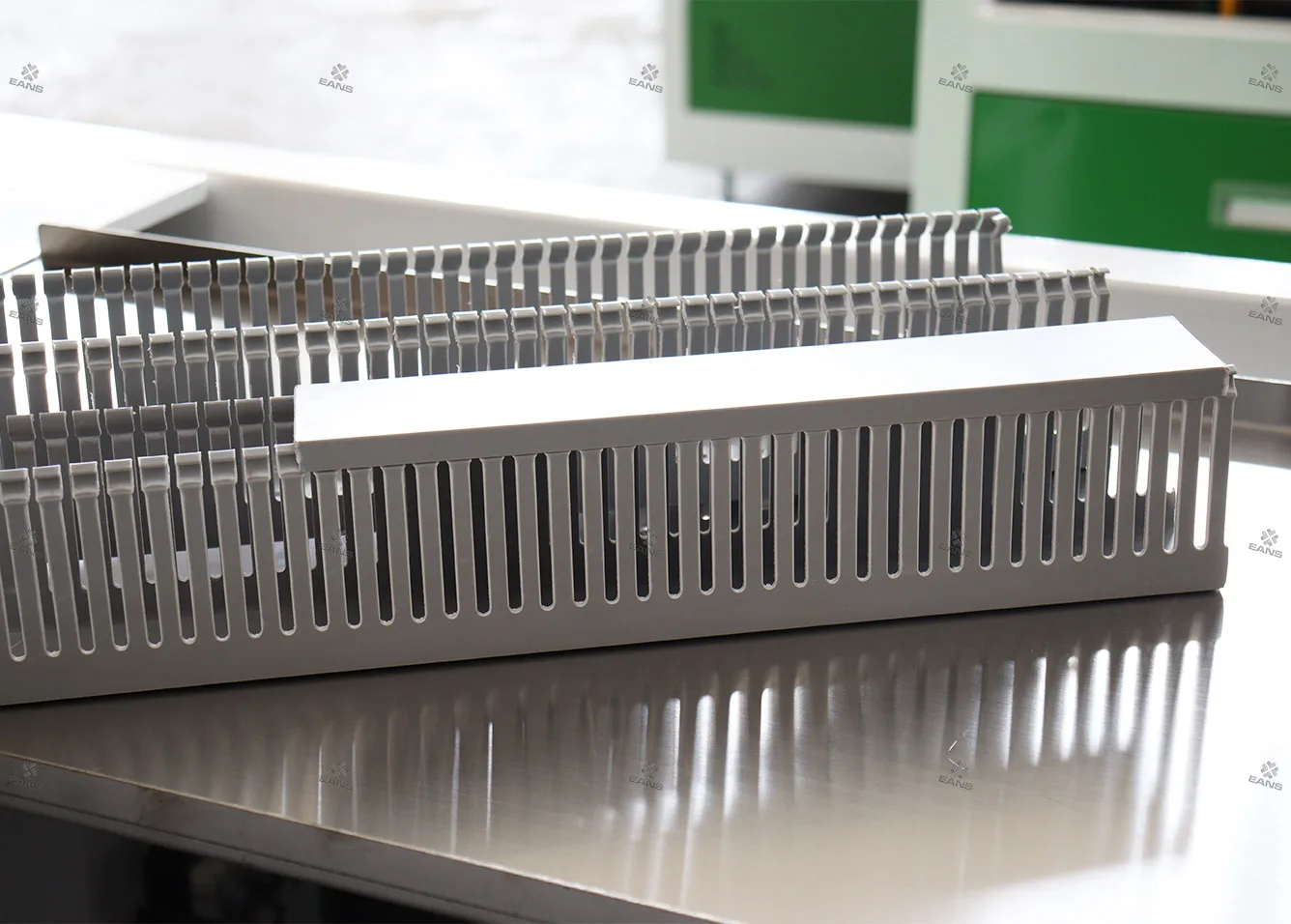

Finished PVC Cable Trunking

FEATURES OF PVC CABLE TRUNKING MAKING MACHINE FROM EANS

EANS PVC cable trunking making machine integrates top & two-side synchronous in-line hydraulic punching, fast tool-free mold switching and ±0.1mm high-precision shaping to cut labor cost, support multi-spec small-batch production and guarantee perfect accessory matching.

● High-Efficiency Conical Twin-Screw Extrusion System
Available in single/dual/quad output configurations to match different capacity demands, ideal for both small-batch customization and mass manufacturing of cable trunking.
● High-Precision Forming for Quality Finished Trunking
Precision CNC-machined die heads produce trunking that meets electrical safety standards: excellent insulation, arc resistance, flame retardant and self-extinguishing properties. Synchronized haul-off unit with variable frequency drive maintains stable pulling force, avoiding profile deformation and guaranteeing straightness of finished cable trunking.
● Flexible Customization for Diverse Applications
1.Compatible with a wide range of PVC cable trunking specifications from 15×9mm to 100×100mm, including square, rectangular and slotted wiring duct profiles, to fit residential, commercial and industrial wiring scenarios.
2.Supports optional punching unit, online printing device and co-extrusion function for dual-color/dual-layer trunking, meeting customized product demands.
3.Molds can be tailored according to customer drawings, adapting to special trunking profiles for unique project requirements.

PURCHASE GUIDE FOR PVC ELECTRIC TRUNKING MACHINE

● What capacity should I choose?
Small scale: capacity 150 kg per hour, medium scale: capacity around 200 kg per hour. For self-production and self-consumption, small-scale production is suitable; for trading companies, medium-scale production is preferable.
● How many pics can produce per hour?
Each PVC cable duct is 2 meters long. Small machines can produce one per minute, and medium-sized PVC cable duct machines can produce about 1.5 per minute.
● What specifications can be produced?
can produce standard sizes such as 25*25, 45*45, 60*30, 80*60, and 100*150 mm, which are all national standard sizes.

MODEL OF PVC CABLE TRUNKING MAKING MACHINE

Technical Parameters

Model	SJZ55/120	SJ65/132
Suitable Materials	PVC	PVC
Applicable Tape Width(mm)	< 200	< 300
Main Motor Power (KW)	22	37
Capacity (KG/24Hour)	4000	6000
Production Speed(m/min)	2	3

Why Choose Us As Your PVC Cable Trunking Making Machine Supplier?

●Source PVC Cable Trunking Machine Manufacturer
You cooperate directly with the factory that manufactures PVC cable trunking machines, with no middleman markup. We offer more competitive factory pricing, flexible custom modification for your PVC cable trunking extrusion line, and direct communication with our professional engineering team. You will never face slow message transfer problems caused by trading companies.
● Stable Structure for Long-Time Operation
Each PVC wire duct making machine is assembled with heavy-duty brand parts and tested for 24 hours of continuous production before delivery. Long average trouble-free running time effectively reduces unexpected shutdown losses, letting you arrange trunking production orders stably instead of spending much time on machine maintenance.
● One-Stop Commissioning & Training
We will not only deliver your PVC cable channel machine, but also. Our professional engineers provide global on-site installation, whole-line commissioning, and systematic operator training. Your workers can master complete operation, daily maintenance, and simple troubleshooting skills, enabling formal mass production of cable trunking within one week after machine arrival.
● Timely After-Sales & Fast Spare Parts Supply
Our service will not end after you receive your PVC cable trunking extrusion line. We supply lifelong remote video & telephone technical support. Core vulnerable spare parts can be arranged for quick shipment, avoiding long waiting periods for accessories that stall your whole trunking production line.

EANS PVC CABLE TRUNKING MAKING MACHIEN VIDEO

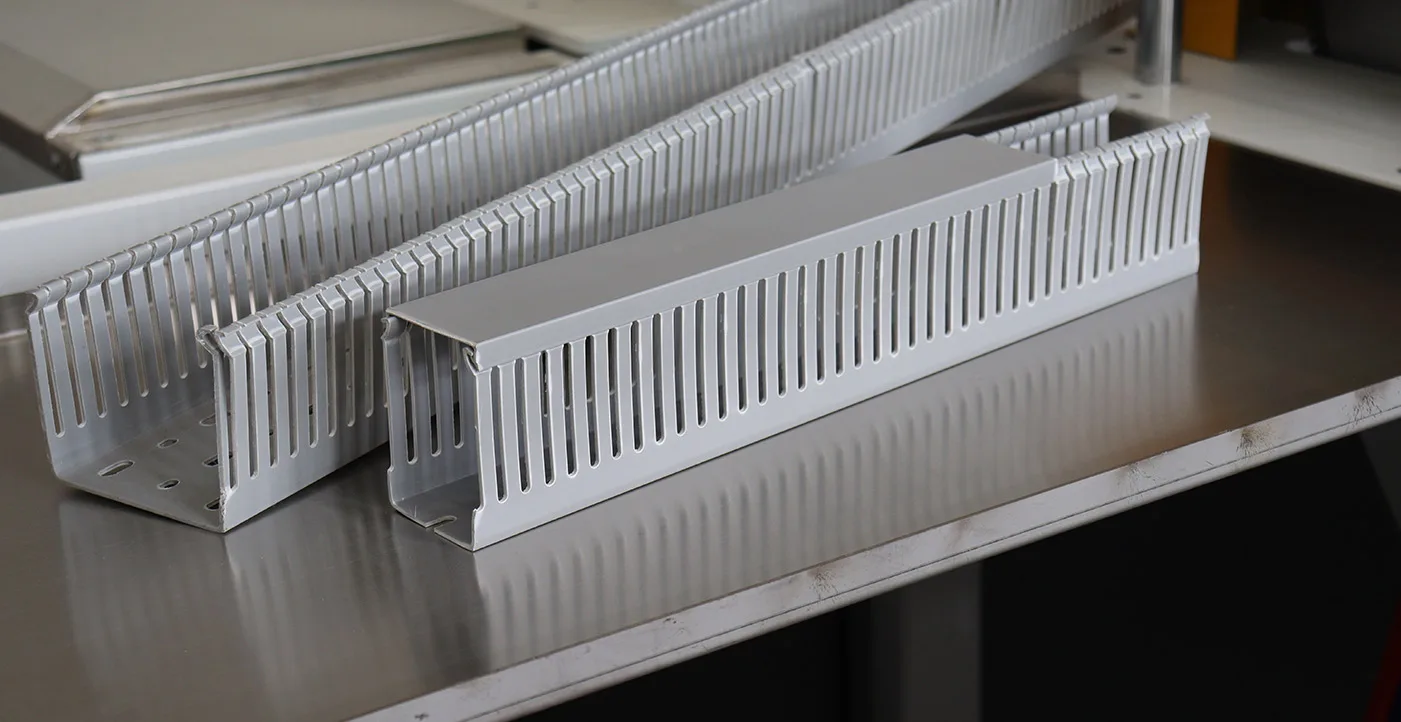

PVC EDGE BANDING MAKING MACHINE

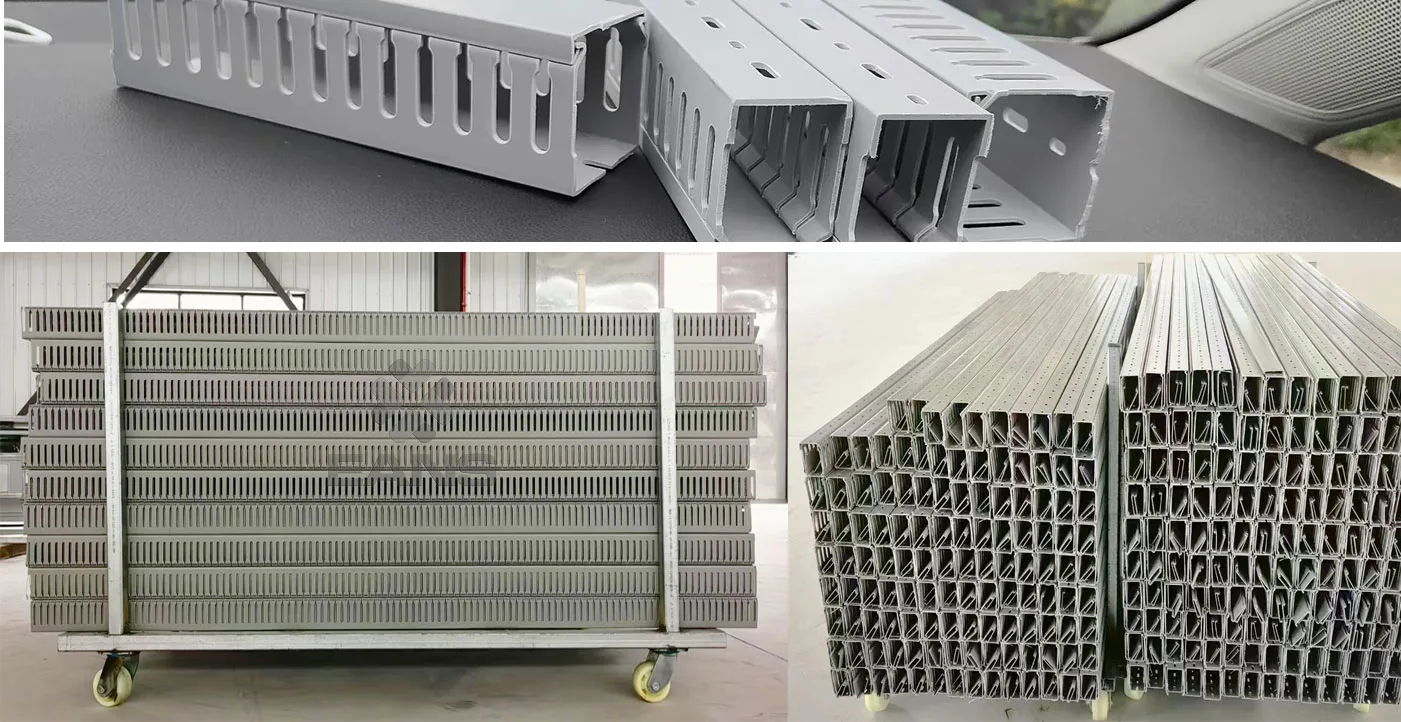

CLIENT FACTROY FOR REFERENCE

EANS PVC cable trunking production line installed in client factory

FAQ

What is PVC Cable Trunking?

PVC cable trays are plastic surface-mounted cable trays, also called wire duct or cable channel. They are profiles used to store and hide wires. There is no need to chisel or cut grooves in the wall; can be directly attached to the wall and the wires can be tucked in and covered, making it neat and safe.

What raw materials are used in PVC cable duct machine?

PVC cable trunking is made of PVC resin, Calcium carbonate, and additives, it is rigid PVC plastic.

What Is A PVC Cable Trunking Making Machine Used For?

PVC cable trunking making machine produces durable wiring ducts and cable trunking via high-temperature plasticizing and extrusion — flame-retardant, smooth surface, precise dimensions. Trusted by 200+ factories worldwide, these machines produce trunking used in residential buildings, industrial plants, and data centers.

Can Recycled Materails Be Used in PVC Cable Channel Extrusion Line?

Yes, the waste PVC materials can be recycled in a PVC cable channel extrusion line. Recycled PVC materials exhibit strong compatibility after mixing and can be directly blended for normal production.

What Sizes Can A PVC Cable Trunking Extrusion Line Produce?

EANS PVC cable trunking extrusion line covers all standard sizes: 10×10mm, 20×10mm, 24×14mm, 50×25mm, 80×80mm, 100×100mm — and any custom size or shape you need. Die changeover takes less than 1 hours, so you can switch between products quickly. 👉 Have a special profile? Share your drawing — we'll design the die for you.

Which PVC Cable Trunking Making Machine Model Should I Choose?

Pick based on your output and product range. The SJZ55/120 is our best-selling entry model — great value for small-to-medium operations. For higher volume or larger profiles (up to 200mm wide), go with the SJZSJZ65/132. 80% of our first-time buyers choose the SJZ65/132 for its balance of speed and flexibility. 👉 Still unsure? Let our engineers recommend the best fit for your business.

What's The Price Of A Complete PVC Cable Trunking Making Machine?

Complete turnkey lines depending on extruder model, automation level, and whether you need the online punching unit for slotted trunking. Pro tip: Tell us your target profile size and daily output — we'll recommend the most cost-effective configuration within 2 hours, no over-selling.

Do You Provide Turnkey Support for Wire Duct Making Machine?

Absolutely — full turnkey service from start to finish in the EANS PVC PVC cable channel machine. Our engineers install on-site, train your team for 3–5 days until they can operate independently, and we stay on call 24/7 after launch. 95% of our customers are running full production within 2 weeks of delivery. Plus a 12-month warranty with spare parts shipped in 24 hours. 👉 Ready to get started? Ask for our installation timeline and training plan.
